PRODUCT INFORMATION

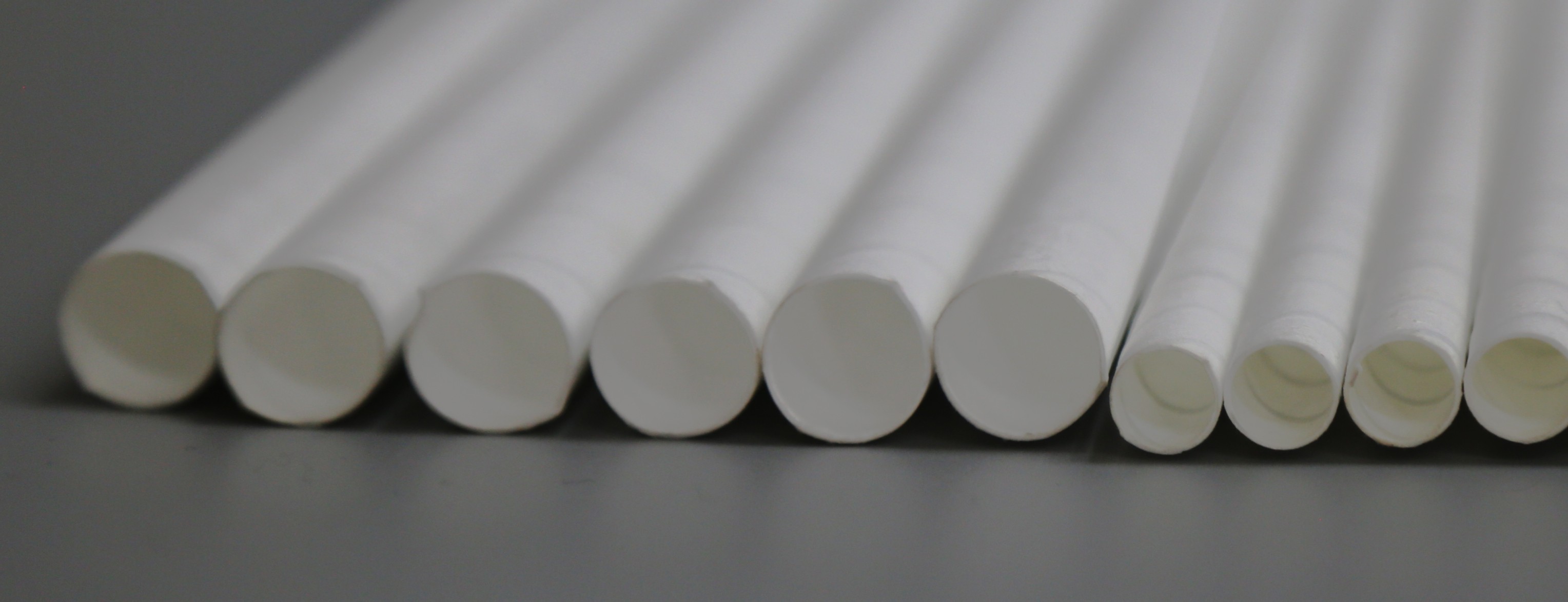

Tubular membrane is made from the membrane casting solution through being casted on glass fiber synthetic paper, nonwoven cloth, plastic or stainless steel support body with diameter of 5-25mm and length of 0.3-6m. A plastic or SS housing filled with membrane constitutes membrane module. Driven by transmembrane pressure, water and small molecules will be penetrated, big molecules are collected.
Advantages
1. The only acid-alkali resistant organic tubular membrane in China, pH range is 0 to 14.
2. Braced membrane module adds more practical applications to tubular membrane, easy to disassemble and can be used repeatedly.
3. Open channel, fouling resistant, can apply to high-viscosity and high-solid liquid system.
4. Good flux recovery after cleaning.
5. High separation accuracy with narrow pore size distribution.
6. Good physical mechanical capability, unbreakable.
SEM Photo of Membrane Section
Technical Parameters
Parameter | Unit | Membrane Material |
PVDF | PES |
Serial Number |
| FM-50N | FM-100 | FM-15 | SM-50N | SM-20 | SM-5 |
MWCO | nm or Dalton | 50nm | 100000 | 15000 | 50nm | 30000 | 5000 |
Pure Water Flux | LMH, 100kpa | 650 | 180 | 50 | 600 | 130 | 15 |
Membrane Diameter | mm | 6、8、12.5 |
Operating Pressure | kpa | 50~1000, 50~1500 |
Maximum Operating Temperature | ℃ | 60 |
pH Range |
| 2~10, 0~14* |
Chlorine Exposure | ppm.h | 25000 |
