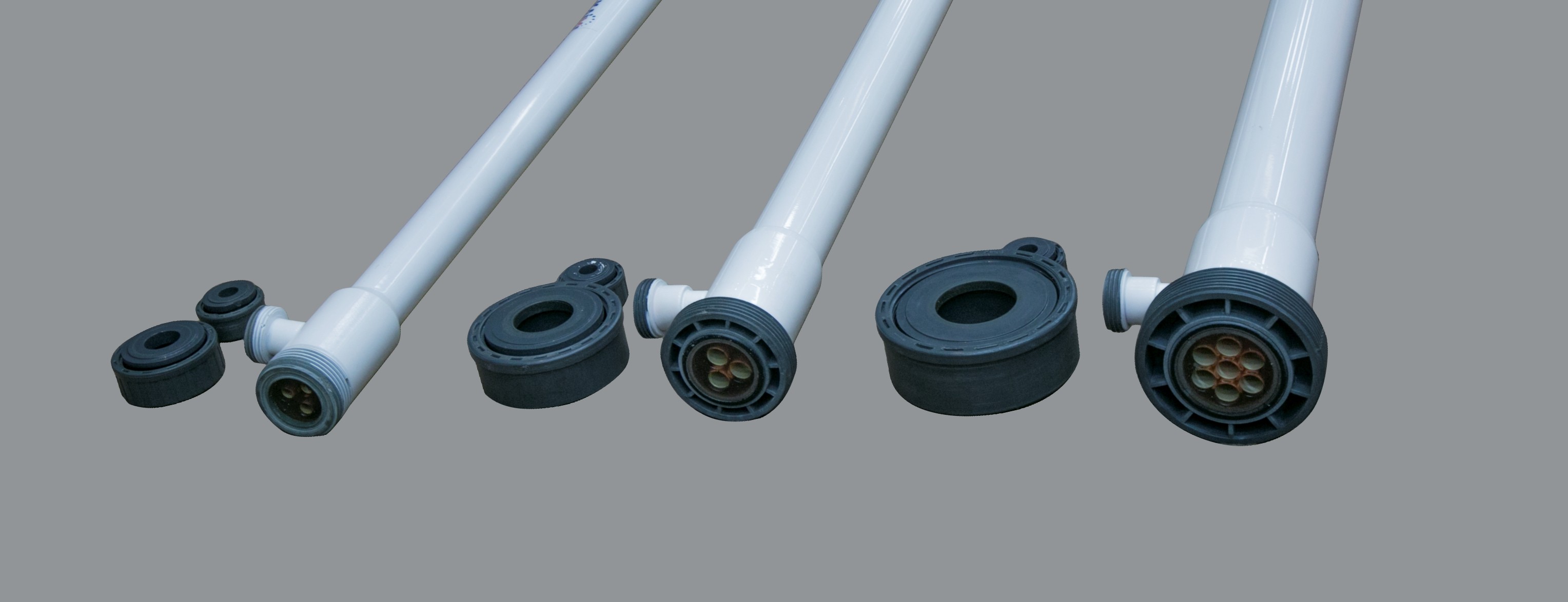

Product Overview
Experimental membrane module is customized type, which can be used for pre-research of industrial wastewater treatment and pilot testing.

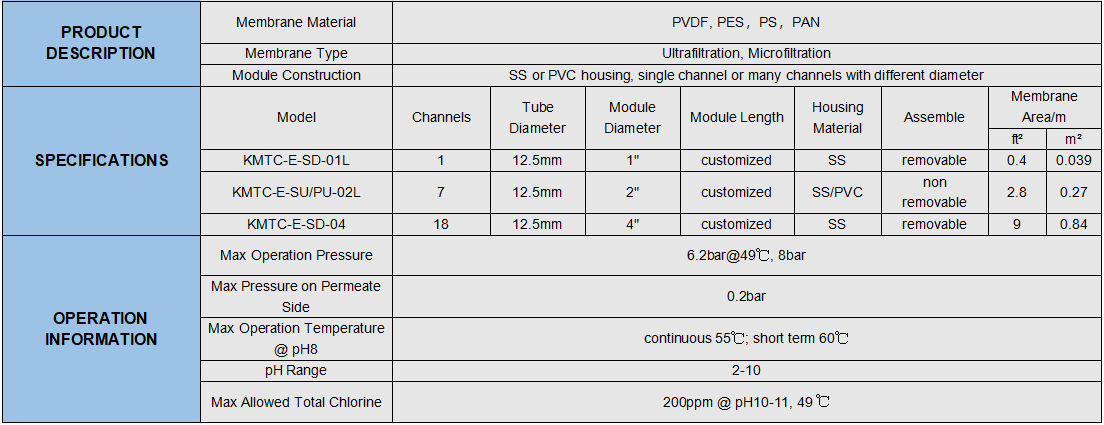

Product Types and Technical Parameters
PRODUCT DESCRIPTION | Membrane Material | PVDF, PES，PS，PAN |
Membrane Type | Ultrafiltration, Microfiltration |
Module Construction | SS or PVC housing, single channel or many channels with different diameter |
SPECIFICATION | Model | Channels | Tube Diameter | Module Diameter | Module Length | Housing Material | Assemble | Membrane Area/m |
ft²
|
m²
|
KMTC-E-SD-01L | 1 | 12.5mm | 1" | customized | SS | removable | 0.4 | 0.039 |
KMTC-E-SU/PU-02L | 7 | 12.5mm | 2" | customized | SS/PVC | non removable | 2.8 | 0.27 |
KMTC-E-SD-04 | 18 | 12.5mm | 4" | customized | SS | removable | 9 | 0.84 |
OPERATION INFORMATION | Max Operation Pressure | 6.2bar@49℃, 8bar
|
Max Pressure on Permeate Side | 0.2bar |
Max Operation Temperature @ pH8 | continuous 55℃; short term 60℃ |
pH Range | 2-10 |
Max Allowed Total Chlorine | 200ppm @ pH10-11, 49 ℃ |

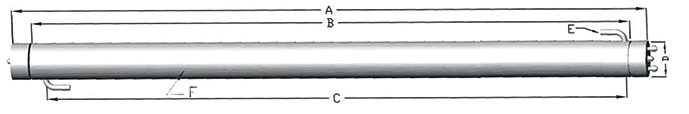

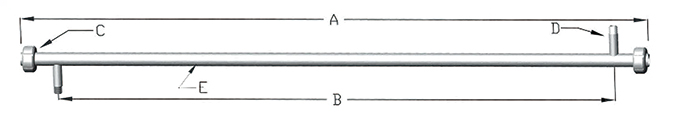

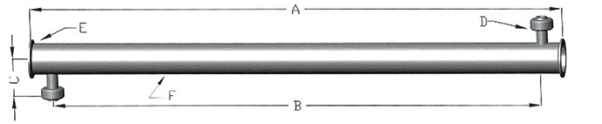

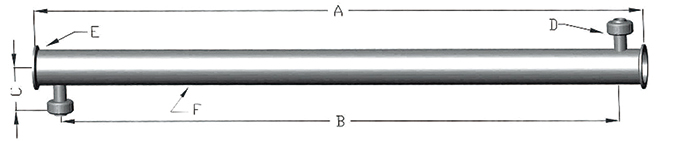

Product Details
Model | A | B | C | D | E |
KMTC-E-SD-01L | customized | - | 1" joint | 0.75" hose coupling | 1" |
Model | A | B | C | D | E | F |
KMTC-E-SU/PU-02L | customized | - | 2.75" | 0.75" loose joint | 2" | 2" |
Model | A | B | C | D | E |
KMTC-E-SD-04L | customized | - | 44" | 4" | 0.6" |
