Product Overview

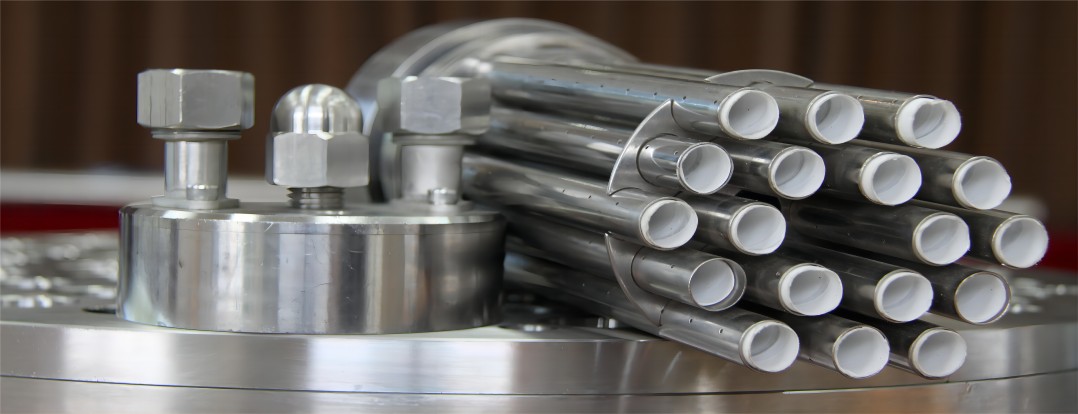

Braced tubular membranes with 12.5mm channels is applicable for a wide range of processing industries for the economic concentration and clarification of liquids and wastewater. The compact design ensures the high strength and allow operating pressures of 10bar at temperatures up to 60°C.
Take alkali/acid recovery for example, it can tolerate 15% H2SO4 and 20% NaOH and the recovery rate can reach 90% so as to effectively extract the recyclable constituents and achieve cost efficiency.
Features
1. Durable, the service life can extend up to 2-3 times of normal membrane
2. High pressure resistant, the maximum pressure can reach up to 1Mpa
3. Acid and alkali resistant, pH range 0-14
4. Lower recirculation flow
5. Flux recovery can reach up to more than 90%
6. Improved coupling technology
Product Types and Technical Parameters
PRODUCT DESCRIPTION | Membrane Material | PVDF, PES |
Membrane Type | Ultrafiltration, Microfiltration |
Module Construction | SS housing, multi-core membrane tubes with 1/2 inch (12.5mm) diameter |
SPECIFICATION | Model | Channels | Tube Diameter | Module Diameter | Module Length | Housing Material | Membrane Area | Technical Datasheet |
ft² |
m²
|
KMTC-S-SD-0412 | 18 | 12.5mm | 4" | 12' | SS | 26.8 | 2.5 | Download |
KMTC-S-SD-0512 | 37 | 12.5mm | 5" | 12' | SS | 55.9 | 5.2 | Download |
OPERATION INFORMATION | Normal Operation Pressure | 4-6bar
|
Max Operation Temperature | 60℃ * |
Max Pressure on Permeate Side | 0.2bar |
Max Cleaning Temperature | 60℃ * |
pH Scope-continuous operating | 0-14 ** |
pH Scope-CIP cleaning | 0-14 ** |
* When the temperature exceeds 50℃, please refer to " Membrane Operating Parameters" |
** Membrane permeate tube is made from stainless steel, please prevent from contacting with corrosive acid |
Key Applications
Waste Alkali/Acid Recovery, Ion Exchange Process Wastewater, Beer Bottle Washing Wastewater, Banknote Printing Wastewater, Papermaking Black Liquid, Lignin Recovery, Refinery Wastewater
